Fuel Dispenser BT-W7

Fuel Dispenser BT-W7
Product Overview:

Technical Specification

*Ambient Temperature: -40℃~+55℃
*Humidity: ≤95%
*Max Flow: 60L/min or 80L/min
*Accuracy: ±0.30%
*Repeating Accuracy: ≤0.15%
*Inlet Vacuum: ≥54kPa
*Outlet Vacuum: ≤0.3MPa
*Power: AC110V±20%, AC220V±20% √, AC380V±20% (50Hz)
*Noise: ≤70dB(A class)
*Unit price range: 0~9999, 0~999999 (changeable)
*Single range:1~9999.99,1~999999.99 (changeable)
*Accumulative range: 0~9999999999.99
*Electronic Calibration.
*Voice and printer (option).
*Stop fueling by integer sale.
*Can set the decimal point for the display, so can be used in many country with different currency rate.
*Leaves the communication ports, so it can communicate with the gas station management system.
*With 3 level password for different user.

Order Selection:

BT-W7 (3 pump-6 nozzle-6 display-6 keyboard)

Customers can select different parts inside, such as Tatsuno Series, Bennet Series, Tokheim Series, etc.

External Dimension: 2300×1200×500

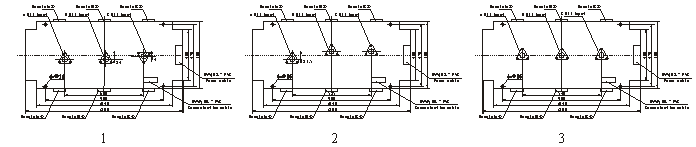

Setting Dimensionn:

1.Match with combination base
2.Match with gear pump base
3.Match with submersible base

Design Features:
Product Range:
