ZVA DN25 Automatic Nozzle
Product Overview:
ZVA DN25 Automatic Nozzle
ZVA DN25 Automatic Nozzle are designed for gasoline, diesel and aviation fuel, with stronger main valve spring up, Not suitablefor viscous oils and water(corrosion). Flow rate is up to 140L/M, Overwing filling for small and medium size aircrafts.
Features and Benefits:
Ø It is equipped in a hold-open latch which enables blocking the lever in one of the three positions reflecting the speeds of flow rate.
Ø Depending on the dispenser type, the nozzle is equipped with a proper guard for easy hanging and locking in the nozzle boot.
Ø It is compatible with DN 25 (1") hose.
Ø The nozzle has a 1" brass fitting swivel.
Ø 100% Factory tested.
| Material | |
| Body | Aluminum |
| Spout | Aluminum |
| Swivel | Brass |
| Seals | Buna-N, Viton |
| Covers | PVC |
| Technical Specifical | |
| Working Pressure | 0.05 - 0.35 Mpa |
| Flow Rate | 140 L/m |
| Auto Shut-off sensibility | 0.1 second |
| Spout Internal Diameter | 31 mm |
| Intel Thread | Female/Male, BSP/NPT, 1" |
| Net Weight | 1.1 KG |
| Swivel Net Weight | 0.34 KG |
| Color Options | |
| Black |
| Package Data | |
| Size | Weight |
| 1pcs = 43*17*6.5 cm (box) | 1.65 kg |
| 10pcs = 0.057 club (carton) | 16.8 kg |

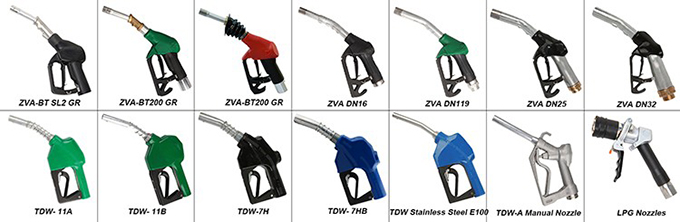

You may like our other automatic nozzles. (Click)
